Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Check wheel control joints of tension struts while installed, replace TENSION STRUTS if necessary.
Remove TRAILING LINKS .

Using a press and special tools 33 3 322 and 31 3 032 , press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

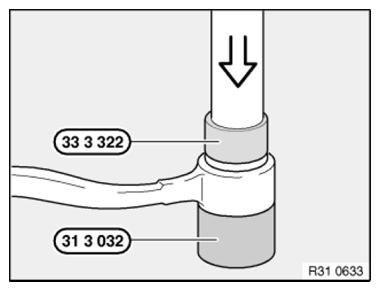

Fig 1: Pressing Rubber Mount Out Of Tension Strut Using Special Tools (33 3 322) And (31 3 032)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

Align rubber mounts to each other using markings and press in. The deviation (A) must not exceed ± 5°.

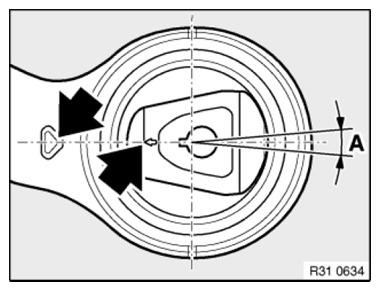

Fig 2: Aligning Rubber Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.

Fig 3: Identifying Stud Protrusion Position

Courtesy of BMW OF NORTH AMERICA, INC.
