Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Check ball joint of both wishbones while installed, replace LOWER WISHBONE if necessary
Remove both LOWER WISHBONES

Press rubber mount with special tools 31 4 151 and 31 4 152 out of wishbone.

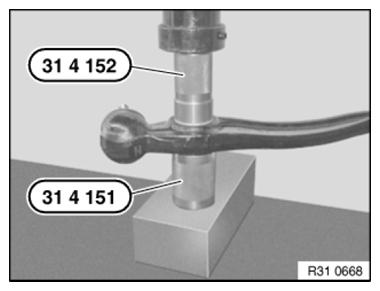

Fig 1: Pressing Rubber Mount With Special Tools (31 4 151) And (31 4 152)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount (1) and bushing in wishbone clean and free from oil and grease.

Press rubber mount (1) (from chamfered end of wishbone bushing) with special tools 31 4 152 and 31 4 154 into limit position of wishbone bushing.

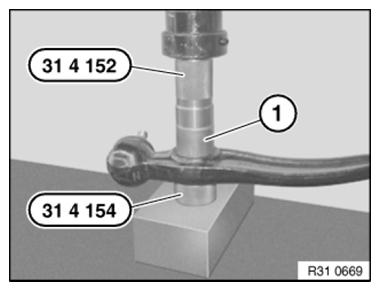

Fig 2: Pressing Rubber Mount (From Chamfered End Of Wishbone Bushing) With Special Tools (31 4 152) And (31 4 154)

Courtesy of BMW OF NORTH AMERICA, INC.
