Necessary Preliminary Tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Check ball joint control arm both in the installed state. See LOWER CONTROL ARM .
Remove both LOWER CONTROL ARMS .

Use special tools 31 4 151 and 31 4 152 to squeeze bearings out of the wishbone.

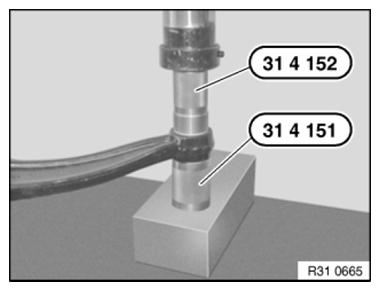

Fig 1: Squeezing Rubber Bearings With Special Tools (31 4 151) And (31 4 152)

Courtesy of BMW OF NORTH AMERICA, INC.

Warning

Rubber bearing use the Gear (1)!

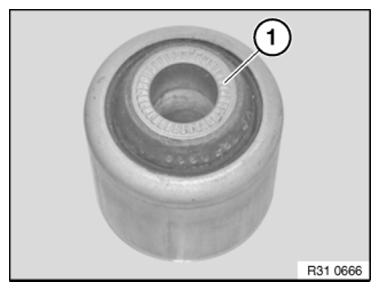

Fig 2: Identifying Rubber Bearing With Teeth

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure rubber bearing (1) and wishbone are free of oil and grease.

Install rubber bearing (1) (beveled side of wishbone bushing) with special tools 31 4 152 and 31 4 153 . Press in all the way into the arm socket.

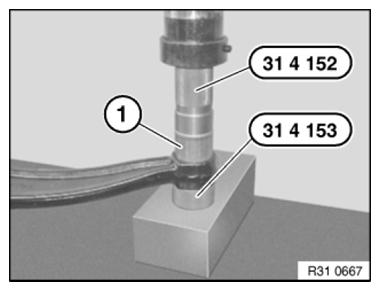

Fig 3: Pressing Rubber Bearings With Special Tools (31 4 152) And (31 4 153)

Courtesy of BMW OF NORTH AMERICA, INC.
