31 12 002 Removing and installing/replacing top left wishbone: Notes
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:

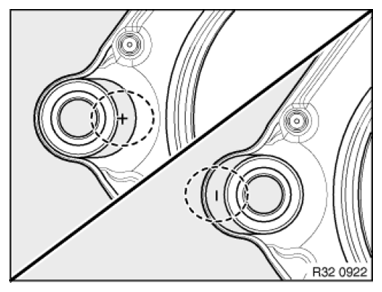

Control arms with + or - marking (see illustration) are camber correction arms:
- Underdimension variant
+ Overdimension variant
These camber correction arms are used to correct the camber values by 30 minutes. To be used only if the tolerance values are exceeded or undershot!
An unmarked wishbone is a standard part.
- Underdimension variant
+ Overdimension variant
These camber correction arms are used to correct the camber values by 30 minutes. To be used only if the tolerance values are exceeded or undershot!
An unmarked wishbone is a standard part.
