31 35 005 Removing and installing/replacing push rod (stabilizer link) for left/right stabilizer

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Do not mix up anti-roll bar links

Stabilizer link for conventional stabilizer
Stabilizer link for active stabilizer

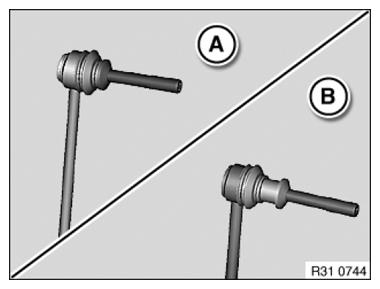

Fig 1: Identifying Stabilizer Link For Active Stabilizer And Conventional Stabilizer
Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Installation:

Replace self-locking nut.

Tightening torque 31 35 2AZ .

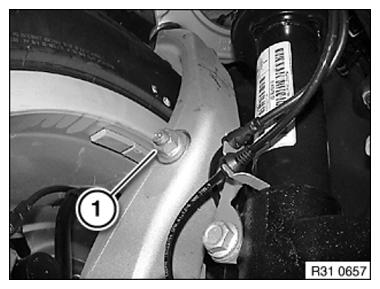

Fig 2: Identifying Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove stabilizer link (2).

Installation:

Replace self-locking nut.

Tightening torque 31 35 2AZ .

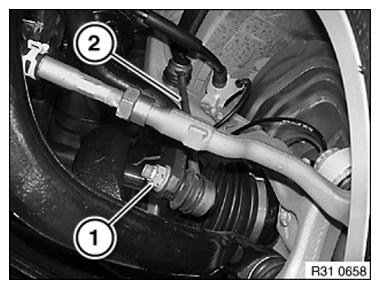

Fig 3: Identifying Stabilizer Link And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
