Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove PARTITION WALL OF UNITS COMPARTMENT SIDEWARDS .
Remove SPRING STRUT HOLDER .

IMPORTANT: Risk of damage!
Secure spring strut against falling out.

Unscrew nuts (1).

Installation note:

Clean contact surface in spring strut dome.

Replace self-locking nuts.

Tightening torque 31 31 1AZ .

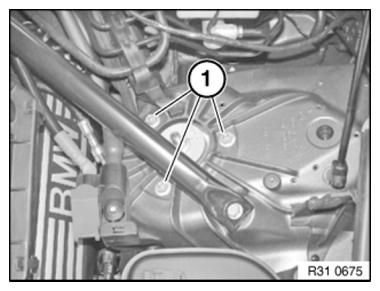

Fig 1: Identifying Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Vertical Dynamics Management: Disconnect both plug connections (1).

Disconnect plug connection (2) on pulse sensor.

Disconnect plug connection (3) from brake lining sensor.

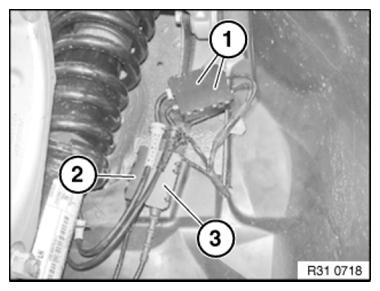

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Remove spring strut downwards out of wheel arch.

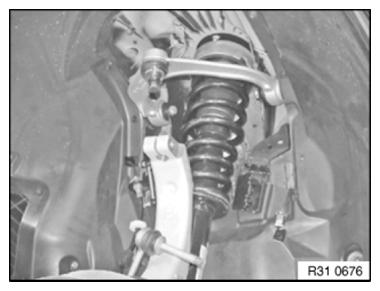

Fig 3: Identifying Spring Strut Of Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.
