31 60... Pressing output shaft out of drive flange (wheel hub) and drawing in: Notes

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

81 64 2 155 744
81 64 2 155 745
81 64 2 155 746

Use special tool, see BMW Workshop Catalogue .

Hydraulic unit - 81 64 2 155 744
Adapter kit 1 - 81 64 2 155 745
Adapter kit 2 - 81 64 2 155 746

The following work steps describe pressing out the output shaft:

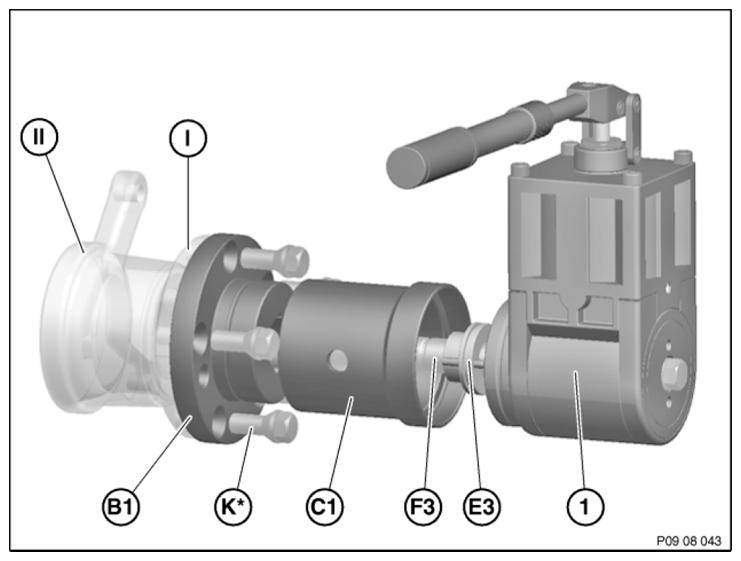

Fig 1: Pressing Out Output Shaft / Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

The following tools are required to press out the output shaft from the drive flange, see graphic for arrangement:
