Necessary components
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Hydraulic unit |
| E3 | Washer M24 |
| F3 | Spindle M24 (length 270 mm) |
| C1 | Holding sleeve |
| K2 | Screws M14 x 1.5 |
| B1 | Adapter |
- Secure output shaft against falling out
- Press out output shaft with hydraulic unit
The following work steps describe drawing in the output shaft:

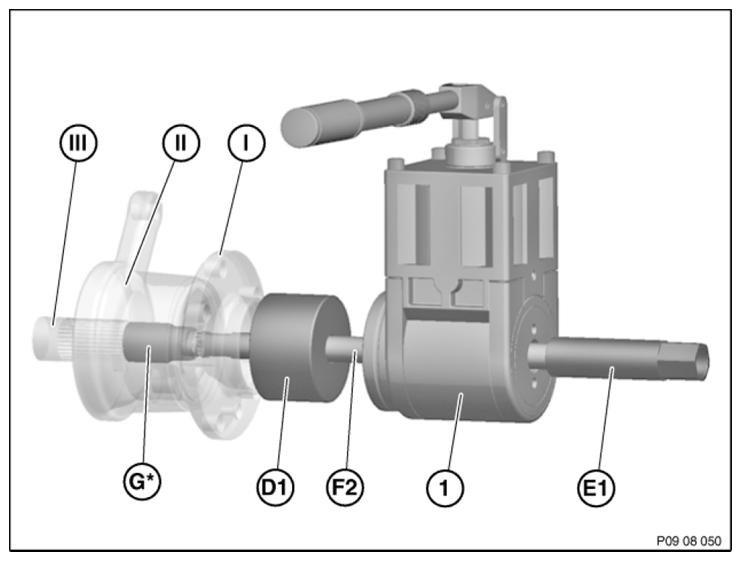

The following tools are required to fit the output shaft in the drive flange, see graphic for arrangement:
