31 60 535 Replacing two gaiters on output shaft(s) (output shaft(s) removed): Notes

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Grip output shaft (1) in vice with aluminum clamping jaws.

NOTE:

2 = Joint, wheel side
3 = Joint, transmission side

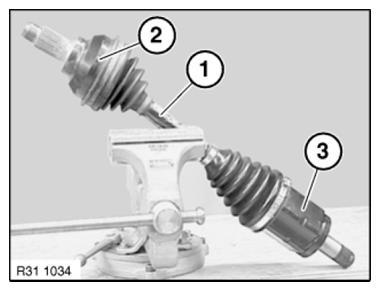

Fig 1: Gripping Output Shaft In Vice With Aluminum Clamping Jaws

Courtesy of BMW OF NORTH AMERICA, INC.
