Structure of table lift

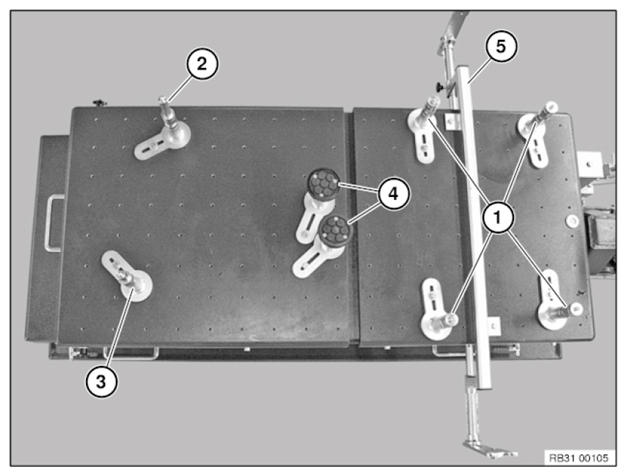

Position retaining elements (2) with fixture (40) on table top B  for cross member at coordinates 3/2.

Position retaining elements (3) with fixture (50) on table top B  for cross member at coordinates 2/6.

Position an additional retaining element (4) with fixture (80) on table top B  under transmission at coordinates 8/5 and 8/6.

Fig 1: Positioning Fixture On Table

Courtesy of BMW OF NORTH AMERICA, INC.

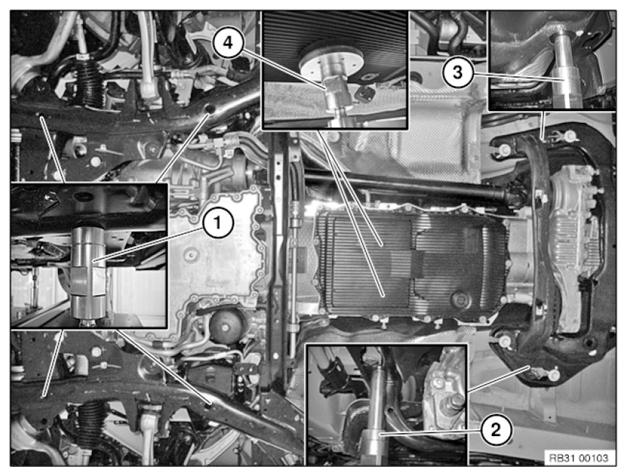

Position retaining elements (1) with fixtures (60) on table top A  for front axle support at coordinates 3/2 - 7/2 - 3/7 and 7/7.

Position fixture (5) on table top A  for swivel bearing at coordinates 4/1 and 5/8.

Fig 2: Identifying Front Axle Support And Transmission Mounting Points

Courtesy of BMW OF NORTH AMERICA, INC.

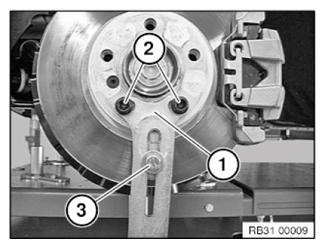

Secure fixture of swivel bearing (1) on brake disc with wheel studs (2).

Secure adjusting screw (3).

Fig 3: Identifying Swivel Bearing, Wheel Studs And Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

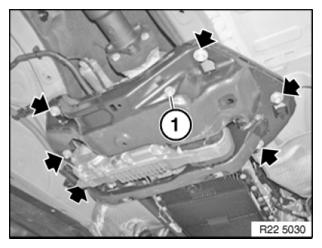

Release screws.

Tightening torque, 22 32 4AZ.

Fig 4: Locating Front Axle Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

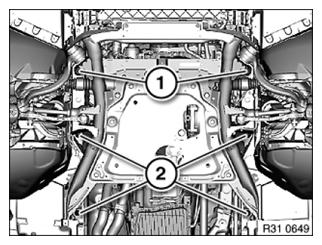

Release screws (1, 2).

Installation note:

Tighten down first screws (1) and then screws (2).

Tightening torque: 31 10 1AZ.

Fig 5: Identifying Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

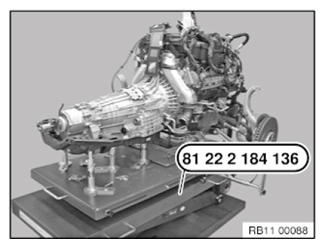

With lift truck 81 22 2 184 136 and the aid of another person, carefully remove engine with transmission from below in front axle support combination.

Fig 6: Removing Engine With Transmission With Lift Truck (81 22 2 184 136)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

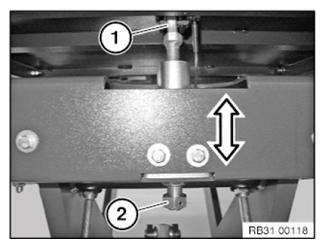

The inclination of the table lift (1) can be adjusted using adjusting screws (2).

Fig 7: Adjusting Table Lift Using Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
