51 24 133 Removing and installing/replacing drive for Soft Close Automatic on rear lid (soft closure aid)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FOR REAR LID LOWER SECTION .

Security vehicles:

Remove rear lid lower section armour-plating

Disconnect plug connection (1).

Release screws (2) and feed out bracket (3).

Tightening torque 51 24 5AZ .

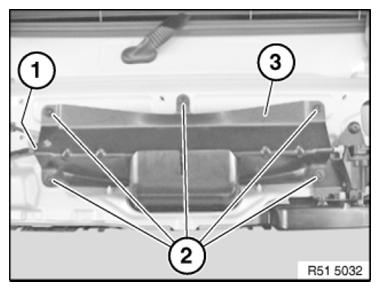

Fig 1: Identifying Plug Connection, Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 24 4AZ .

Unfasten cable tie (2).

Remove soft closure aid (3) from bracket (4).

Installation:

Adjust REAR LID LOCK .

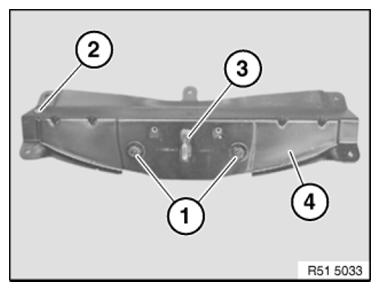

Fig 2: Identifying Soft Closure Aid, Bracket, Cable Tie And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
