51 13 280 Removing and installing/renewing trim strip on roof frame at left or right

Special tools required:

• 00 9 321

Necessary preliminary tasks

• If necessary, remove ROOF RAILS

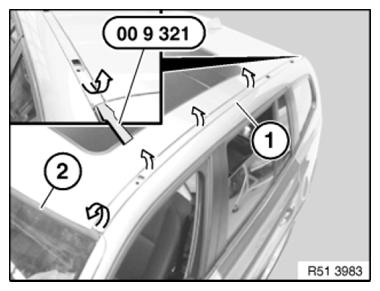

Lever out trim strip (1) with special tool 00 9 321 starting at rear.

Unclip trim strip (1) up to front and if necessary pull out of seal (2) towards rear.

Fig 1: Removing Trim Strip Using Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

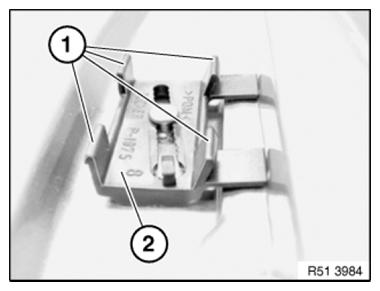

Catches (1) of clips (2) must not be damaged.

If necessary, replace clips (2).

Fig 2: Identifying Trim Strip Catches And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

E83 only:

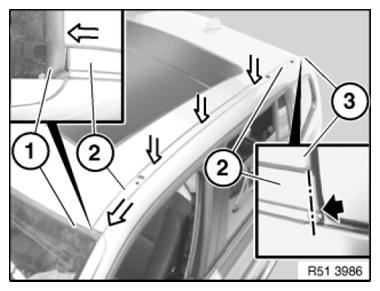

Push trim strip (2) at front into seal (1).

Trim strip (2) must be flush with edge (3) at rear.

Clip trim strip (2) into place completely.

Fig 3: Pushing Trim Strip Into Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

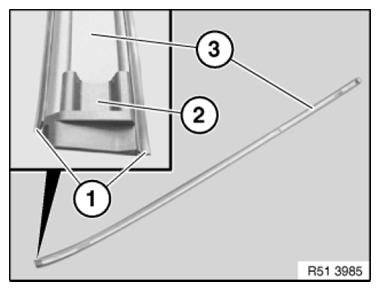

Following parts of trim strip (3) must not be damaged or missing:

1. Seals
2. End piece, front/rear

Replacement

Moisten seals (1) with water and slide into trim strip (3).

Fit end pieces (2) at front and rear.

Fig 4: Identifying Seals, End Piece And Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

E71 only:

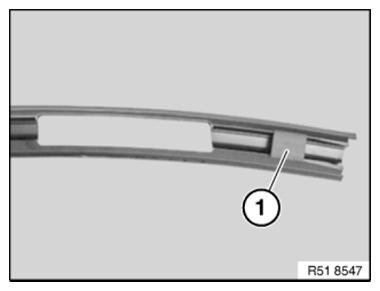

Modify support element (1) on front trim strip.

Fig 5: Identifying Front Trim Strip Support Element

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

E70/71 only:

Trim strip is delivered cathodic dip-painted only and must be primed.
