51 37 000 Removing and installing/replacing complete rear left or right power window regulator

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Disengage, but do not remove, the door window and secure in the door window frame.
There is no need to remove the weather strip or cover for the window guide.

Necessary preliminary tasks

DOOR WINDOW GLASS, REAR .

Release nuts (1) and feed out power window regulator (2).

Tightening torque 51 35 2AZ .

Replacement

Remove FLAT MOTOR .

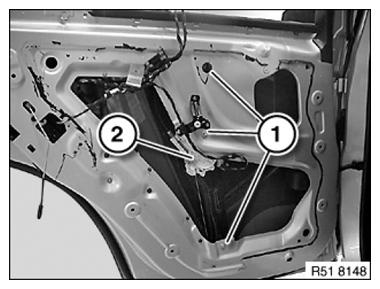

Fig 1: Identifying Power Window Regulator And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
