51 45 181 Removing and installing/replacing trim for instrument panel, bottom right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Move front passenger seat completely towards rear.

Unclip cover (2) with MOST direct access.

Release screws (1) and feed out instrument panel trim (3).

Disconnect plug connection for footwell light and remove instrument panel trim (3).

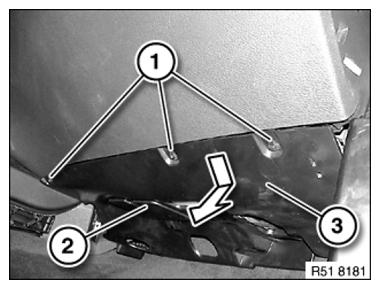

Fig 1: Removing Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) of instrument panel trim (2) must be positioned in associated recess (3).

Replacement:

Remove FOOTWELL LIGHT .

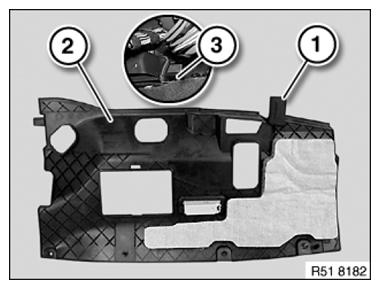

Fig 2: Identifying Instrument Panel Trim, Recess And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
