51 23 201 Removing and installing/replacing release mechanism for catch on engine compartment lid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Unhook Bowden cable (1) from striker (2).

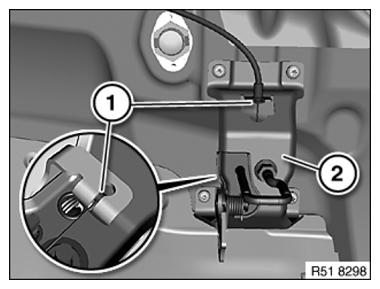

Fig 1: Identifying Bowden Cables And Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Press catches (1) together.

Feed out release mechanism (2).

Installation:

Make sure Bowden cable is in correct position in area (3).

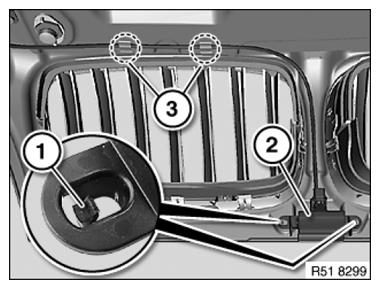

Fig 2: Identifying Bowden Cable Installation Area, Release Mechanism And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
