51 23 131 Adjusting left or right striker on engine hood/bonnet

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Adjusting striker is described in:
ADJUSTING ENGINE COMPARTMENT LID .

Release bolts (1) and remove striker (2).

Tightening torque 51 23 3AZ .

Left side only:

Disconnect Bowden cable (3).

Installation:

ADJUST ENGINE COMPARTMENT LID .

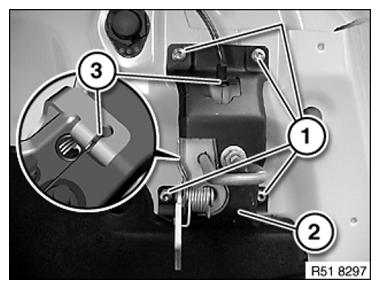

Fig 1: Identifying Bowden Cables, Striker And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
