51 23 110 Removing and installing/replacing left hood/bonnet lock

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever cable (3) out of coupling (1).

NOTE: The operation "Disconnect cable for hood/bonnet lock" ends here.

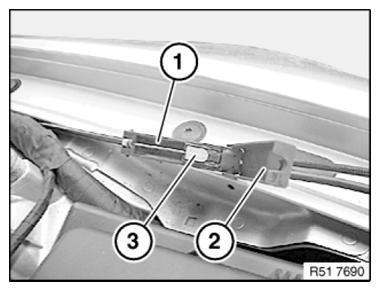

Fig 1: Identifying Hood/Bonnet Lock Coupling, Cover And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 23 2AZ .

Fig 2: Identifying Hood/Bonnet Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Attachment parts are shown removed for purposes of clarity.

Feed out hood/bonnet lock (1) through opening (2) towards rear.

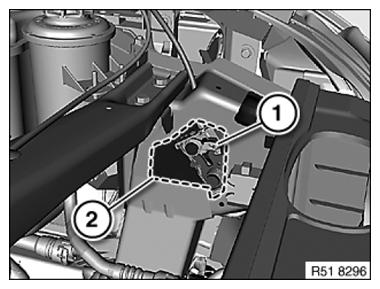

Fig 3: Identifying Hood/Bonnet Lock And Opening

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Attachment parts are shown removed for purposes of clarity.

Disengage Bowden cable (1) in direction of arrow from engine hood lock (2).

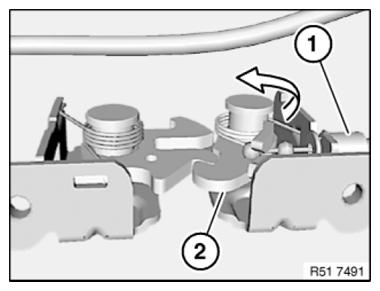

Fig 4: Disengaging Bowden Cable From Engine Hood Lock

Courtesy of BMW OF NORTH AMERICA, INC.
