51 47 315 Removing and installing / replacing front carpet for passenger compartment
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove both side trim panels in footwell . See 51 43 070 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, LEFT or 51 43 075 REMOVING AND INSTALLING / REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT.
- Remove both front seats . See 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) , 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT , 52 16 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT or 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/SEMI-ELECTRIC) .
- Remove AIRBAG CONTROL UNIT .
- Remove ACCELERATOR PEDAL MODULE .
Depending on version:
- Remove EMERGENCY OPERATION .
- Remove both CENTRAL BASS SPEAKER COVERS .
- Remove REAR COMPARTMENT BLOWER .

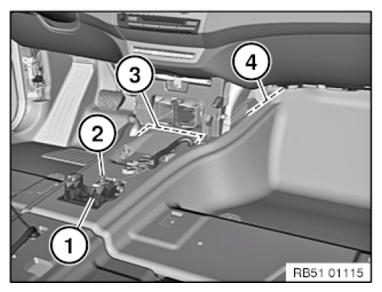

Remove holder (1).
Undo nut (2) and remove ground cable.
Cut out carpet at cutting edge (3) and (4) left/right.
IMPORTANT:
Risk of damage!
Start cuts towards center of vehicle as far as is possible to guarantee that cutting edges are covered by storage compartment and/or trim panels.
Pay attention to cables when cutting.
Start cuts towards center of vehicle as far as is possible to guarantee that cutting edges are covered by storage compartment and/or trim panels.
Pay attention to cables when cutting.
Move back cable through carpet.
Feed out carpet to rear/top.
Installation note:

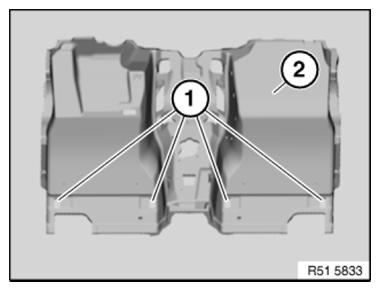

Apertures (1) serve as alignment points when fitting carpet (2).
Replacement
Lay removed carpet over new one and transfer cuts to new carpet.
