24 00... Overview of transmission housing (GA6HP26Z)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

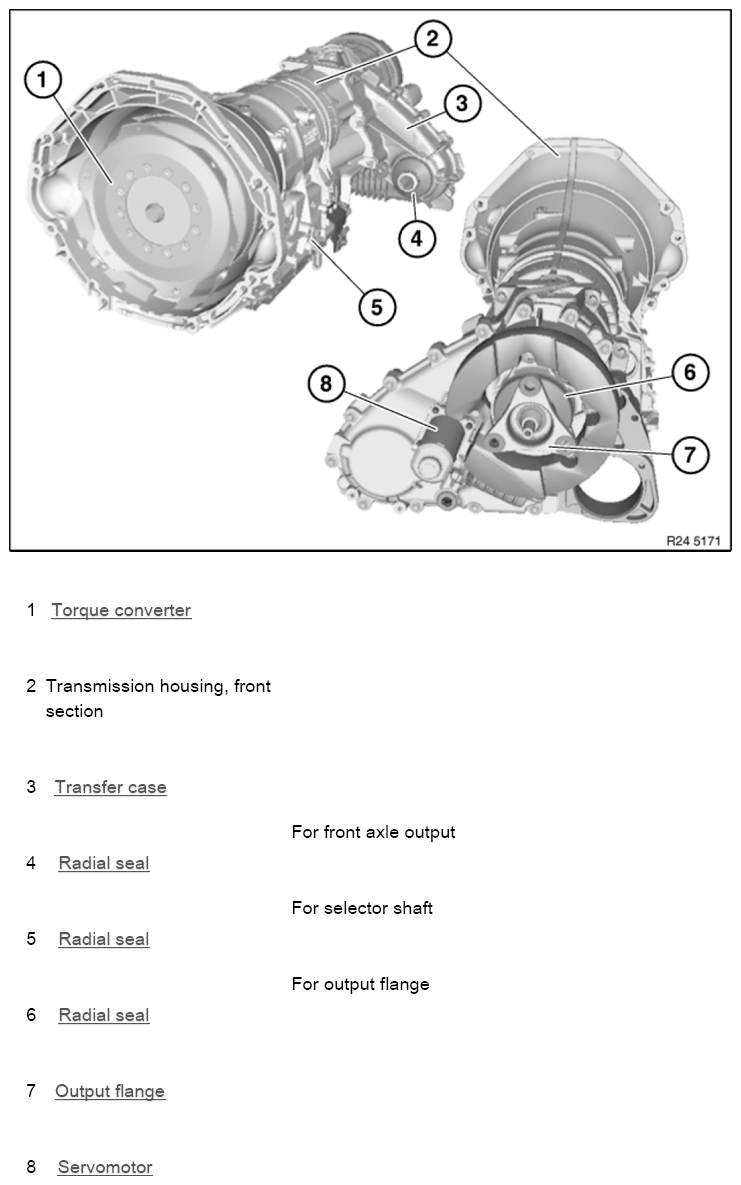

Fig 1: Overview Of Transmission Housing (GA6HP26Z)
G08527417Courtesy of BMW OF NORTH AMERICA, INC.

Complete transmission, transmission oil change, transmission designations
