67 13 001 Replacing drive unit for electrically operated left or right door mirror
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove mirror glass for rearview mirror. Refer to 51 16 026 REPLACING MIRROR GLASS .

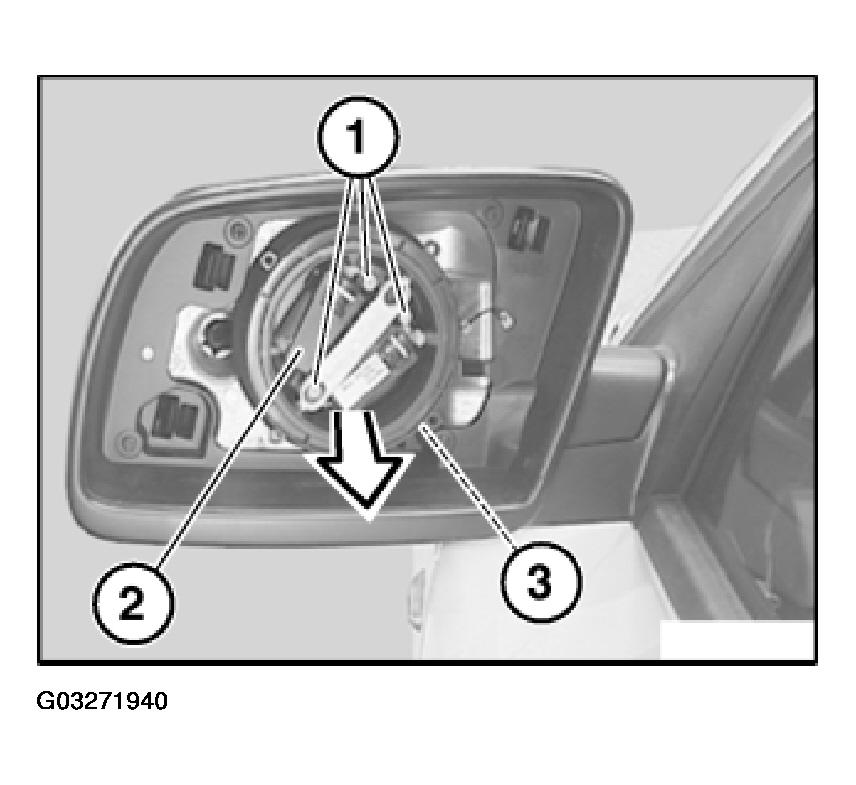

Release screws (1).
Remove drive unit for electrically operated door mirror (2) slightly in direction of arrow.
Unfasten plug connection (3) and disconnect.
Remove drive unit for electrically operated door mirror (2).
