67 62 020 Removing and installing/replacing flat motor for rear left or right power window regulator

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach soundproofing on rear door in working area. Refer to 51 48 070 REMOVING AND INSTALLING/REPLACING SOUND INSULATION ON LEFT OR RIGHT REAR DOOR .

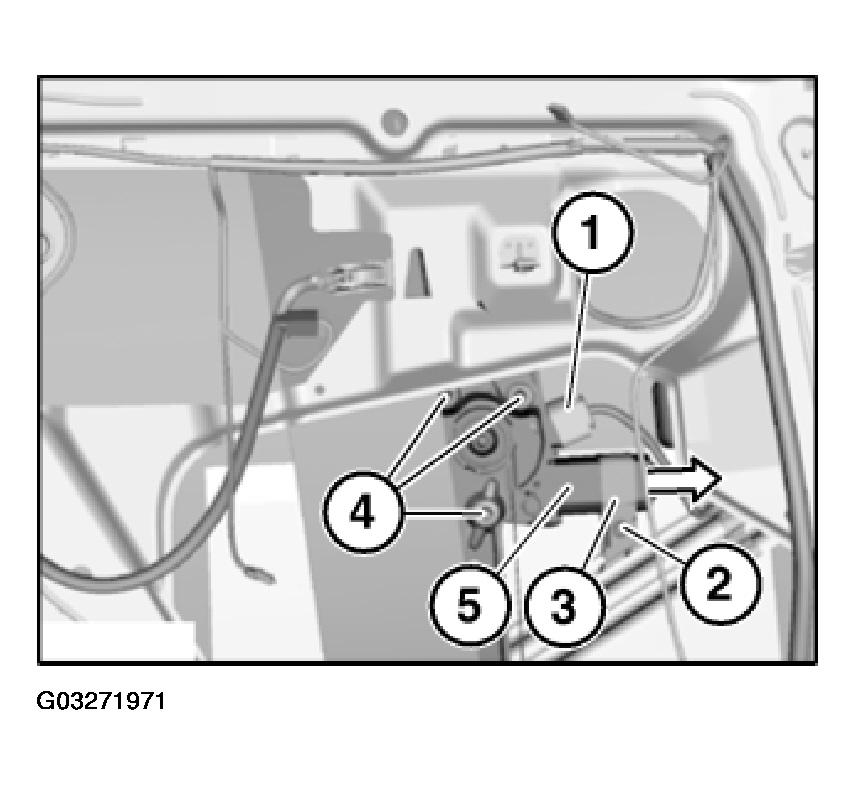

Unfasten plug connection (1) and disconnect.

Release screw (2) of locking bar (3).

Remove locking bar (3) in direction of arrow from flat motor for power window unit (5).

Release screws (4).

Carefully press flat motor for power window unit (5) towards rear out of mounting.

If necessary, pull power window unit forwards slightly and feed out flat motor for power window unit (5) and remove.

Fig 1: Locating Locking Bar Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

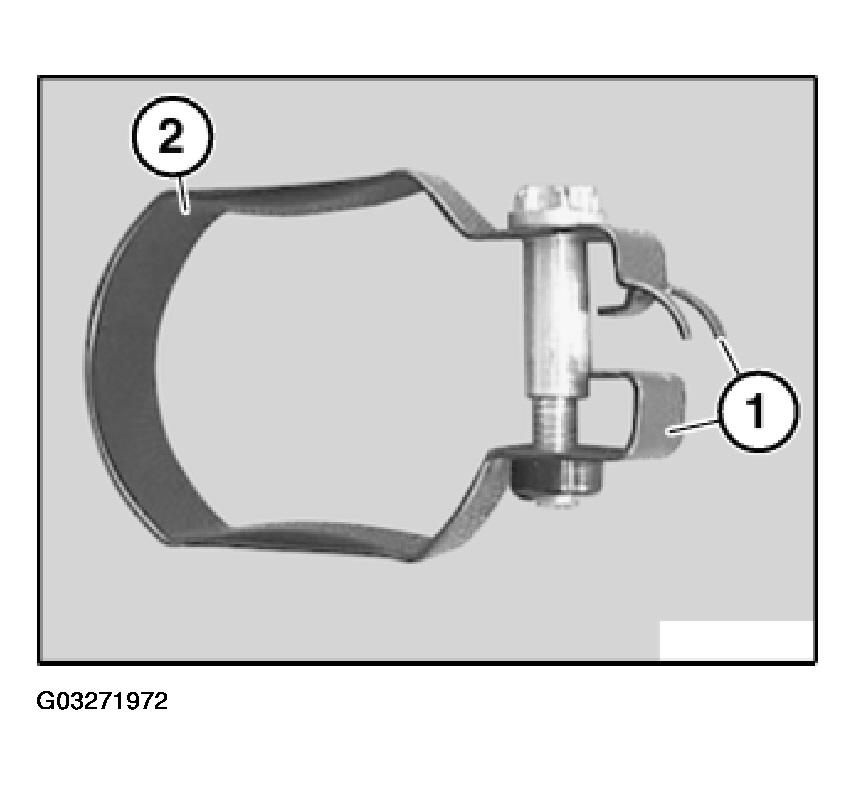

Make sure guides (1) are correctly seated when fitting retaining clip (2).

Fig 2: Identifying Guides In Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize power window. Refer to 67 62 ... NOTES ON INITIALIZING POWER WINDOW .

NOTE: Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
