67 64 010 Removing and installing/replacing drive unit for electric steering column adjustment

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Move steering wheel into maximum "lower" and "extended" position.
Remove driver's side storage compartment. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING DRIVER'S SIDE STORAGE COMPARTMENT .

Unlock plug connections (1) and (2) of drive unit for electric steering column adjustment (3) and disconnect.

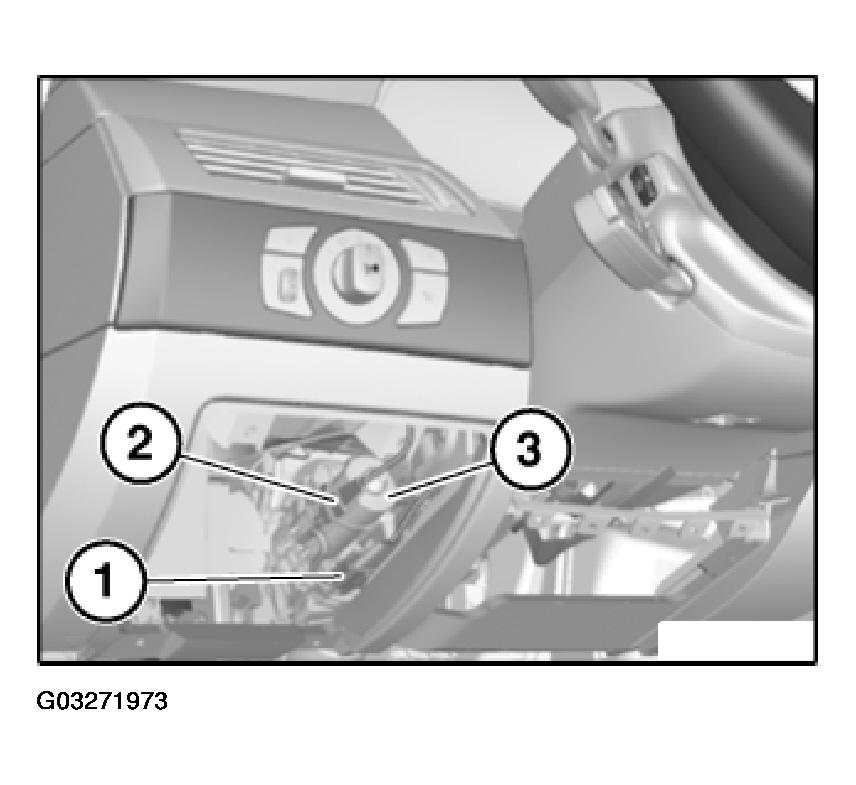

Fig 1: Identifying Plug Connections Of Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustrations show steering column removed.

Remove screws (1) and (2).

Installation:

Replace screws (1) and (2).

Tightening torque, (6 N.m.).

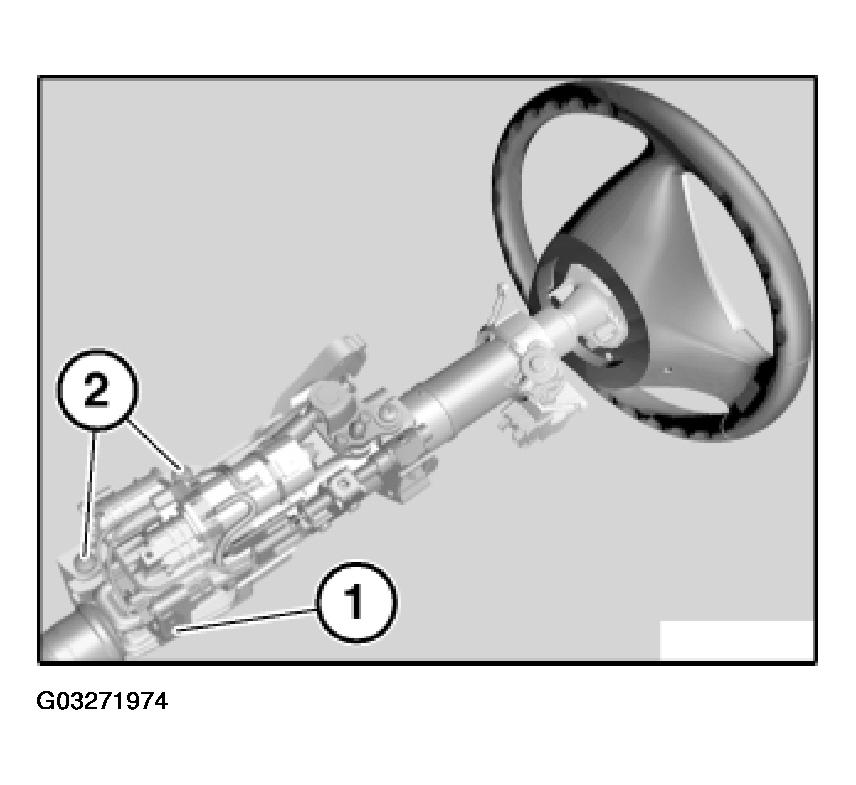

Fig 2: Replacing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Pay attention to drive shafts (1) and (3) when removing and installing drive unit for electric steering column adjustment (4). Do not bend or twist. Drive shafts (1) and (3) must be exactly inserted in associated mountings (2).

Detach drive shafts (1) and (3) from associated mountings (2) and remove drive unit for electric steering column adjustment (4).

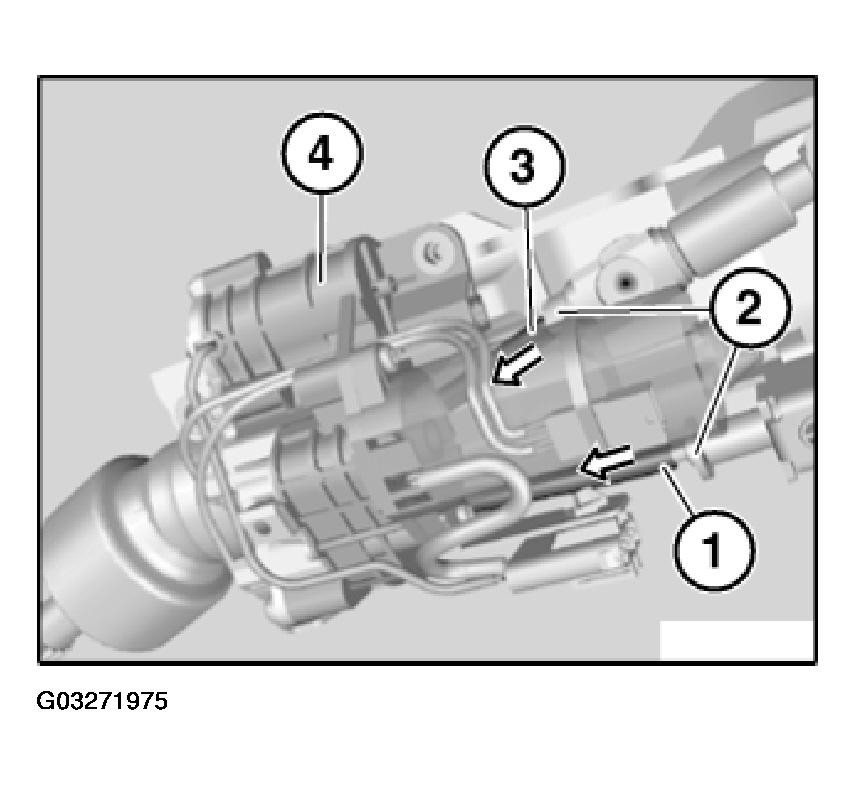

Fig 3: Removing Drive Shafts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Longer drive shaft (1) is located in installation position under shorter drive shaft (2).

Drive shafts (1) and (2) must be exactly inserted in associated mountings (4).

If necessary, replace plastic mount (3).

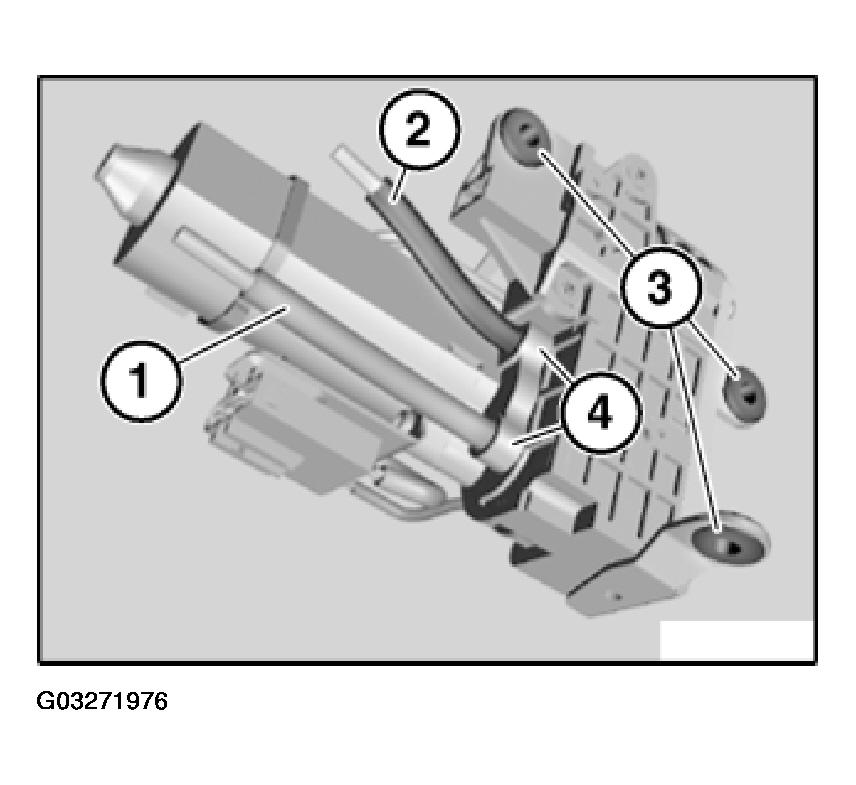

Fig 4: View Of Drive Shafts In Associated Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
