36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit (LOW COST)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

If necessary, loosen the heat shield (1).

Disconnect plug connection (2).

Push the retaining tabs (3) apart.

Pull the RDC control unit out.

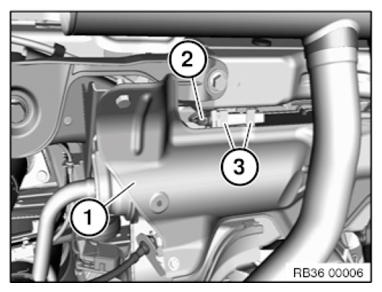

Fig 1: Identifying Heat Shield, Plug Connection And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out PROGRAMMING/ENCODING .
