12 31 020 Removing and installing or replacing alternator (S63)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Turn off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove alternator DRIVE BELT .
Remove FUEL FEED LINE .

IMPORTANT: Risk of damage!
Cover radiator.

Unlock plug (1) and remove.

Remove cover (2) and release nut underneath.

Tightening torque 12 42 1AZ .

Disconnect positive battery cable from alternator.

Installation:

Absolutely reinstall cover (2) Risk of short circuiting!

Fig 1: Identifying Cover And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cable channel (1) upwards from alternator holder and place to one side.

Remove wiring harness (2) from alternator holder and place to one side.

Fig 2: Pulling Off Cable Channel Upwards From Alternator Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Place auxiliary water pump to one side.

Do not pull off coolant hoses (2)

Fig 3: Identifying Auxiliary Water Pump Screws And Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws (1).

Tightening torque 12 31 1AZ .

Unclip positive battery cable (2) from alternator holder.

Feed out holder (3) and remove.

Feed out alternator and remove.

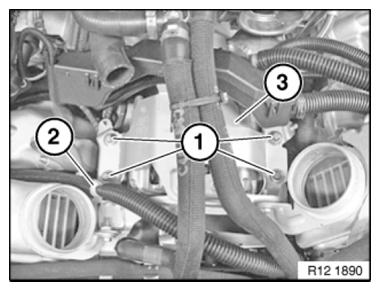

Fig 4: Identifying Positive Battery Cable, Holder And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
