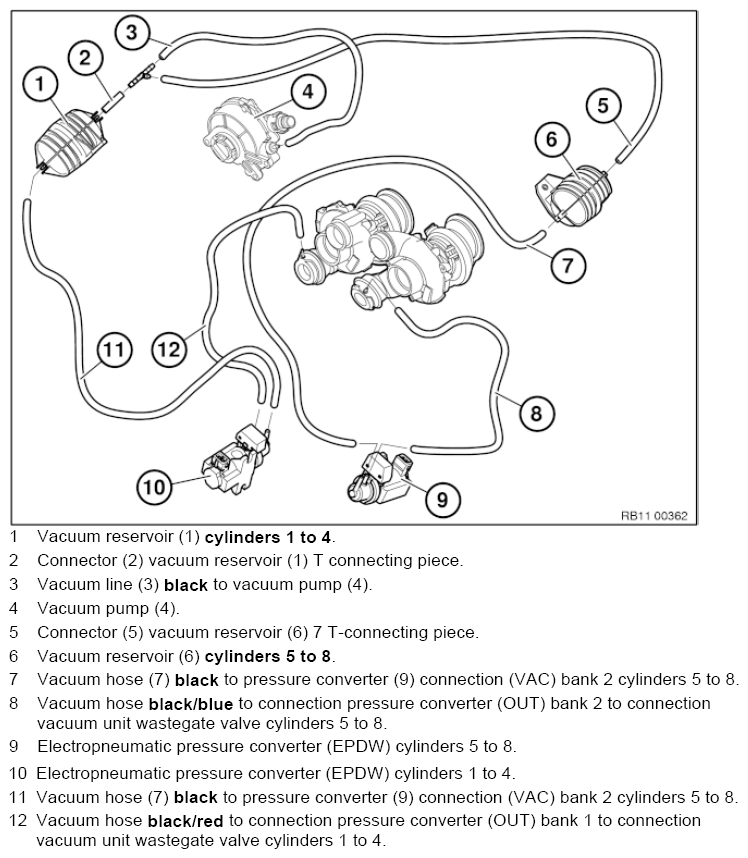

11 65 Connection diagram, vacuum activation (S63)
Installation note:
Standard vacuum hoses are to be replaced by moulded hoses.

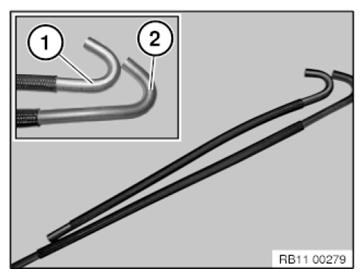

Moulded vacuum hose (1) color code red for cylinders 1 to 4.
Moulded vacuum hose (2) color code blue for cylinders 5 to 8.

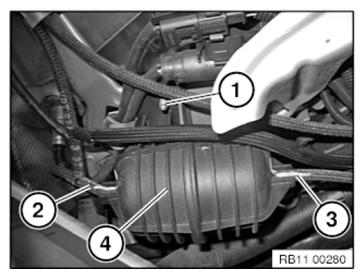

Screw connection (1) vacuum reservoir cylinders 1 to 4.
Connection (2) to vacuum pump.
Connection (3) to electropneumatic pressure converter (EPDW).
Vacuum reservoir (4) cylinder (1 to 4).

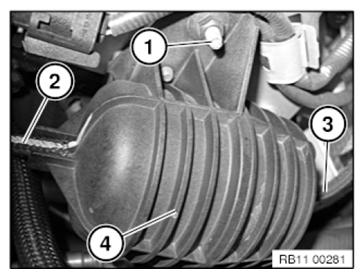

Screw connection (1) vacuum reservoir cylinders 5 to 8
Connection (2) to electropneumatic pressure converter (EPDW).
Connection (3) to vacuum pump.
Vacuum reservoir (4) cylinder (5 to 8).

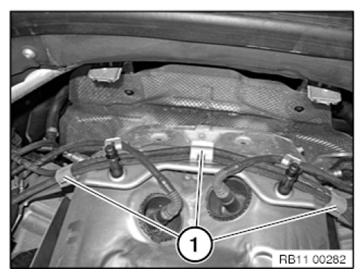

Retaining clip (1) of vacuum lines.
Installation note:
Ensure correct installation position.

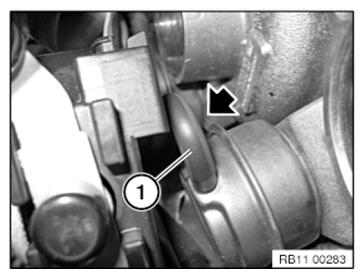

Slide on moulded hose (1) for exhaust turbocharger cylinders 5 to 8.
Color code black/blue.

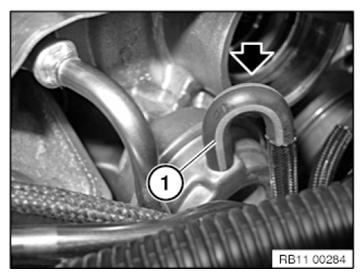

Slide on moulded hose (1) for exhaust turbocharger cylinders 1 to 4.
Color code black/red.

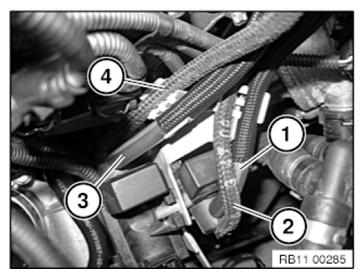

Connection (1) connection OUT cylinders 5 to 8 color code blue.
Connection (2) connection VAC cylinders 5 to 8 color code black.
Connection (3) connection OUT cylinders 1 to 4 color code red.
Connection (4) connection VAC cylinders 1 to 4 color code black.
Installation note:
Observe diagnosis instructions.
Perform exhaust turbocharger test.
