11 65 010 Removing and installing/replacing pressure accumulator (S63)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove acoustic cover.

Vacuum reservoir, right.

Slacken nut (1).

Tightening torque 11 65 6AZ .

Pull vacuum hoses off the vacuum reservoir.

Remove vacuum reservoir.

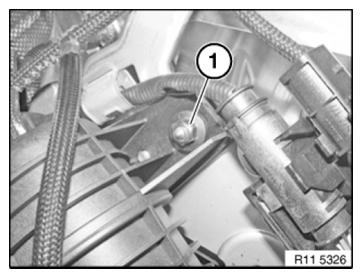

Fig 1: Identifying Vacuum Reservoir Nut

G08526413

Courtesy of BMW OF NORTH AMERICA, INC.

Vacuum reservoir, left.

Slacken nut (1).

Tightening torque 11 65 6AZ .

Pull vacuum hoses off the vacuum reservoir.

Remove vacuum reservoir.

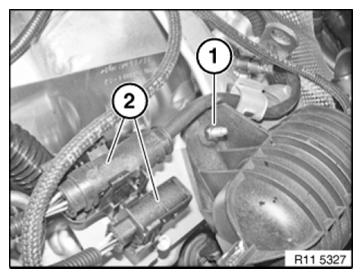

Fig 2: Identifying Holder Plug And Nut

G08526415

Courtesy of BMW OF NORTH AMERICA, INC.

Check vacuum connections for correct routing.

Check vacuum system for tightness.

Assemble engine.
