Necessary preliminary tasks
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
- Open side trim panel in luggage compartment at rear left
- Remove first-aid kit and warning triangle
IMPORTANT:
Secure vehicle against rolling, e.g. with chocks.

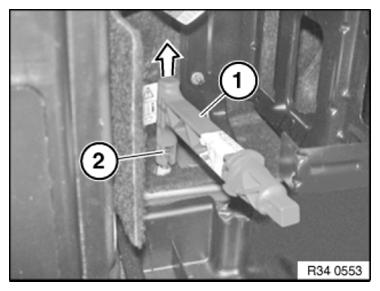

Attach release tool (1) at release point (2).
Forcefully pull release tool against mechanical resistance upwards in direction of arrow until a clear increase in force can be felt and the parking brake can be clearly heard to release.
NOTE:
Startup after circuit interruption:
- Switch on ignition.
- Press brake button with brake pedal depressed.
- The indicator lamp in the instrument cluster goes out as soon as the parking brake is released.
