necessary preliminary tasks
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
- GENERAL INFORMATION note
- vacuum brake fluid
Note:
Brake fluid from the expansion tank suction. To use a suction flask, which is used exclusively for the extraction of brake fluid.
Do not reuse brake fluid.
After completion of the work:
Warning
Do not mix up the brake lines.
If necessary, mark before disassembly.
Brake Lines unit must not be bent.

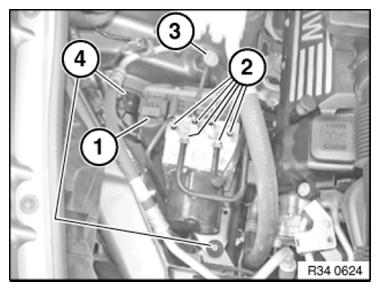

Disconnect plug connection (1).
Brake lines (2) loose.
Tightening torque: 34 32 1AZ .
If necessary. Mounting brake lines on the end wall-less.
Floating screw (3).
Tightening torque: 34 51 6AZ .
Hydraulic unit with pull out holder (4) and remove.
