Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Partially detach rear WHEEL ARCH TRIM
Read and comply with GENERAL INFORMATION .

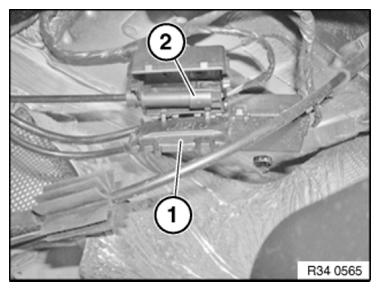

Open housing cover (1).

Disconnect plug connection (2).

Installation:

Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

Fig 1: Identifying Housing Cover And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

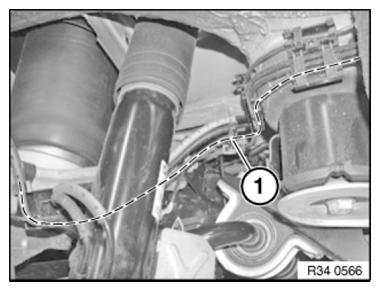

Disengage cable (1) along marked lines from holders.

Installation:

Ensure proper locking of the holders and proper seating of the cable in the holders.

Fig 2: Identifying Cable Disengagement Line

Courtesy of BMW OF NORTH AMERICA, INC.

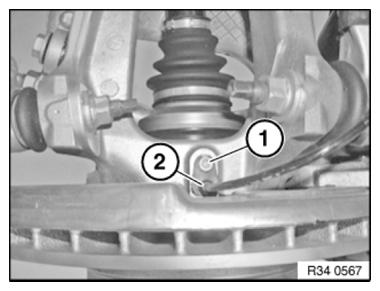

Release Torx socket screw (1).

Withdraw wheel speed sensor (2) from bore hole.

Installation:

Tightening torque 34 51 3AZ .

Clean bore for pulse generator and lubricate with Staburags NBU 12/K lubricating grease.

Fig 3: Identifying Wheel Speed Sensor And Torx Socket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check sensor head prior to installation for external damage, replacing if necessary.
