Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with General Information.

Disengage cable guides (2).

Open connector housing (1), pull plug connection out of holder and disconnect.

Pull cable with rubber grommet out of holders (3).

Installation:

Ensure proper locking of plug connector and proper seating of rubber grommets.

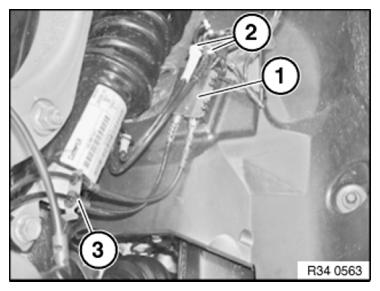

Fig 1: Identifying Connector Housing, Cable Guides And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable guides (1).

Release Torx socket screw (2) and pull pulse sensor (3) out of bore.

Installation:

Tightening torque 31 51 3AZ .

Clean bore for pulse sensor and lubricate with Staburags NBU 12/K lubricating grease.

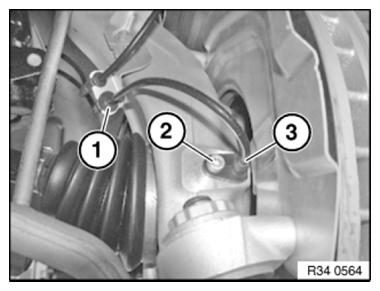

Fig 2: Identifying Cable Guides, Pulse Sensor And Torx Socket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check sensor head prior to installation for external damage, replacing if necessary.
