Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL .

Release fastening elements (1 to 3).

Swing wheel arch panel (4) upwards.

Installation note:

If necessary, replace defective retaining elements.

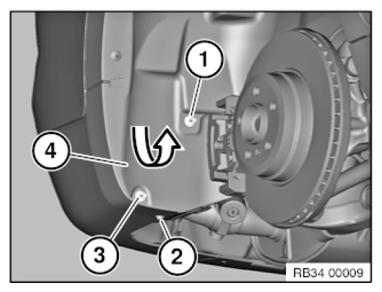

Fig 1: Swinging Wheel Arch Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Open housing cover (1).

Disconnect plug connection (2).

Installation note:

Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

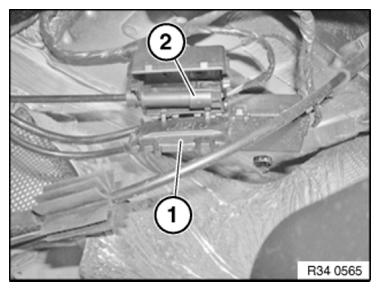

Fig 2: Identifying Housing Cover And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable (1) along marked lines from holders.

Installation note:

Ensure proper locking of the holders and proper seating of the cable in the holders.

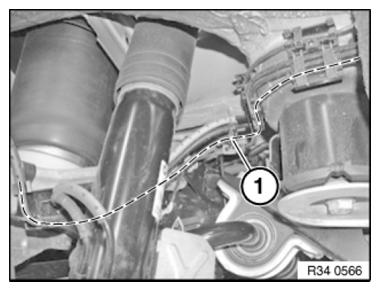

Fig 3: Identifying Cable Disengagement Line

Courtesy of BMW OF NORTH AMERICA, INC.

Pull brake pad sensor (1) in direction of arrow out of brake pad.

Installation note:

Make sure brake pad sensor (1) is correctly seated in brake pad.

Disengage cable of brake pad sensor from holders (2).

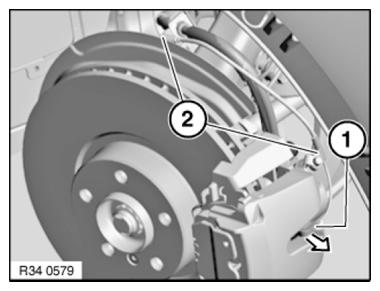

Fig 4: Pulling Brake Pad Sensor From Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.
