Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove WHEEL .

Disengage cable guides (2).

Open cover (1) on plug housing.

Disconnect plug connection.

Disengage cable from cable guide (3).

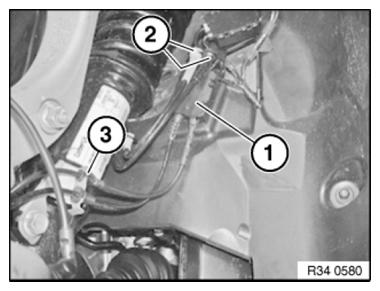

Fig 1: Identifying Plug Housing Cover, Cable And Cable Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Pull brake pad sensor (1) in direction of arrow out of brake pad.

Installation:

Make sure brake pad sensor (1) is correctly seated in brake pad.

Disengage cable of brake pad sensor from holders (2).

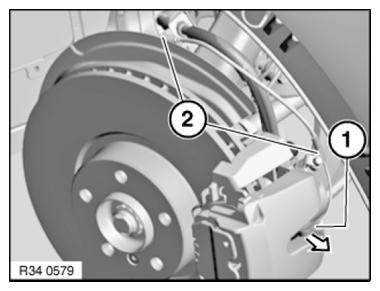

Fig 2: Pulling Brake Pad Sensor From Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.
