Necessary preliminary work
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
When replacing or repairing, observe the filling and bleeding instructions for the following parts:
Connect bleeder unit with max. 2 bar filling pressure.
A second person is needed to help carry out this work.
- Tandem brake master cylinder
- Hydraulic unit
- Components and connecting lines which are fitted between these assemblies.
- For E72: SBA control unit
Connect bleeder unit with max. 2 bar filling pressure.
A second person is needed to help carry out this work.
Use only BMW-approved brake fluids, see BRAKES - OPERATING FLUIDS .
Connect DIS.
Select path: Service functions - Chassis/Suspension - Traction control systems - Bleeding procedure.
IMPORTANT:
Check relevant equipment manufacturer's operating instructions for each device.
Charging pressure should not exceed 2 bar.
Charging pressure should not exceed 2 bar.

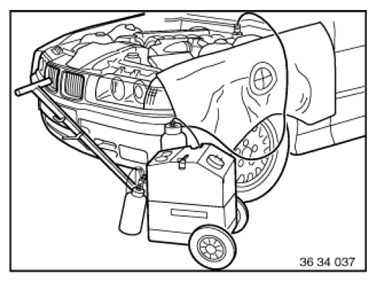

Connect brake fluid changer to expansion tank and switch on.
