Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When carrying out repairs to the brake system, follow the procedure set out in BLEEDING BRAKE SYSTEM WITH DSC .

Use only BMW-approved brake fluids, see BRAKES - OPERATING FLUIDS .

Connect brake fluid changer to expansion tank and switch on.

NOTE: Check relevant equipment manufacturer's operating instructions for each device.
Charging pressure should not exceed 2 bar.

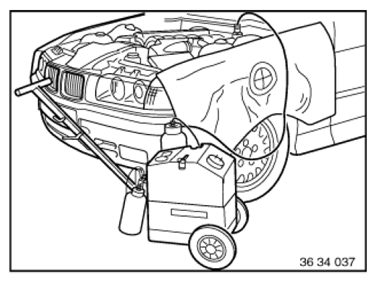

Fig 1: Bleeding Brake System Using DSC
G08528081Courtesy of BMW OF NORTH AMERICA, INC.
