Fully rinse the brake system

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close vent valve.

Follow same procedure on rear left, front right and front left wheel brake.

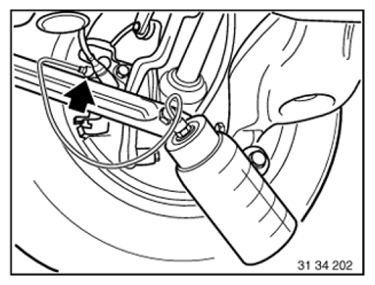

Fig 1: Locating Bleeder Valve On Rear Right Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The clutch slave cylinder must also be scavenged in vehicles with manual transmissions.

Switch off brake fluid changer and remove from expansion tank.

Check brake fluid level. If necessary, top up/draw off to max. level.

Close expansion tank.

NOTE: Pay attention to rubber seal (1) in sealing cap.

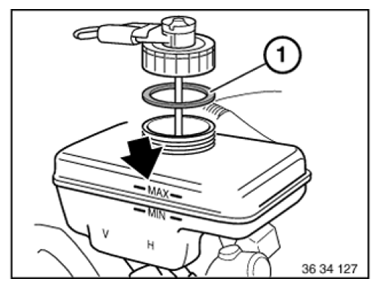

Fig 2: Locating Brake Fluid Maximum Level

Courtesy of BMW OF NORTH AMERICA, INC.
