Section 3025 (Brakes - Repair)
>>
Brake Lines
>>
34 32... Overview of brake lines
34 32... Overview of brake lines
WARNING:
This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

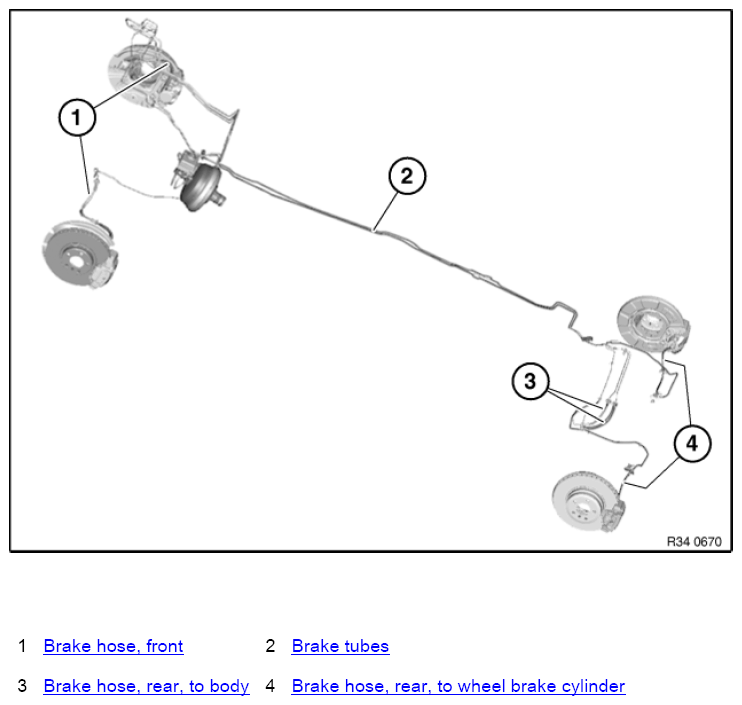

Fig 1: Overview Of Brake Lines
Courtesy of BMW OF NORTH AMERICA, INC.
