Section 3024 (Heating And Air Conditioning - Repair)
>>
Heater With Operation
>>
64 12... Overview of blower - 3rd seat row
64 12... Overview of blower - 3rd seat row
WARNING:
This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

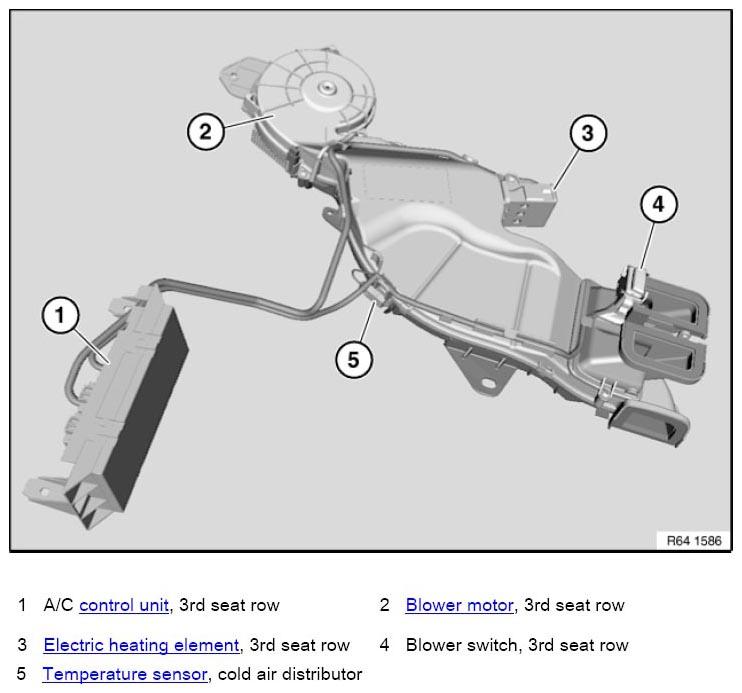

Fig 1: Overview Of Blower
Courtesy of BMW OF NORTH AMERICA, INC.
