64 12 676 Replacing electric auxiliary heater - 3rd seat row

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRE CONSOLE - 3RD SEAT ROW

NOTE: The following pictures show the 3rd seat row and seat cushion removed for purposes of clarity.

Disconnect plug connection (1).

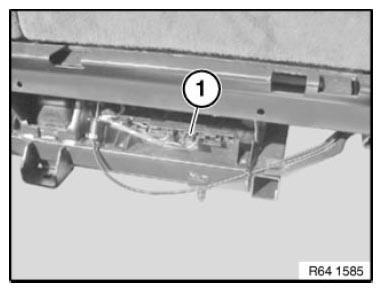

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Starlock washer (1) from holding rod (2).

Installation:

If necessary, replace defective Starlock washer (1).

Make sure Starlock washer (1) is correctly seated on holding rod (2).

Fig 2: Identifying Starlock Washer And Holding Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Slide holding rod (1) in direction of arrow out of guides and tilt seat cushion (2) forwards.

Fig 3: Sliding Holding Rod From Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and feed out auxiliary heater (2).

Installation:

Ensure correct line routing (3).

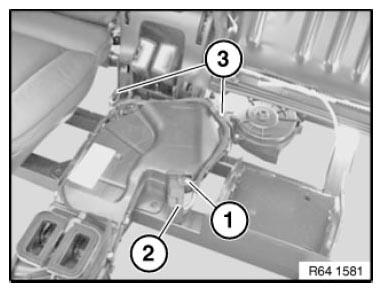

Fig 4: Identifying Auxiliary Heater, Line Routing And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
