64 12 160 Removing and installing or replacing complete independent heater with bracket

Special tools required:

• 13 3 010

Recycling

Necessary preliminary tasks

• Remove left UNDERBODY PANELLING

Disconnect plug connection (1).

Release hose clamp (2) and detach fuel line.

Release screw (3).

Tightening torque 64 12 2AZ .

Fig 1: Identifying Hose Clamp, Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect coolant hoses (1) with special tool 13 3 010 .

Release hose clamps (2) and detach coolant hoses (1).

Release nuts (4) and unclamp associated hoses from holder (5).

Remove heater (3) and set down on a suitable surface.

Fig 2: Identifying Heater, Coolant Hoses, Clamp And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) and remove complete heater (2) with bracket.

Fig 3: Identifying Heater Bracket And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Fuel escapes when fuel lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Replacement

Modify SILENCER .

Release hose clamp (1) and detach coolant hose.

Release screw (2).

Tightening torque 64 12 3AZ .

Disconnect plug connection (3) and remove auxiliary water pump (4).

Installation note:

Check coolant hoses for damage and replace if necessary.

Fig 4: Identifying Auxiliary Water Pump, Plug Connection, Hose Clamp And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove heater from bracket (2).

Tightening torque 64 12 4AZ .

Fig 5: Identifying Heater Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

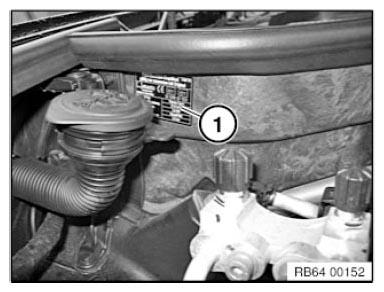

Until 09/2012, replace for diesel engines duplicate type label (1).

Fig 6: Identifying Diesel Engines Duplicate Type Label

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

• VENT COOLING SYSTEM
