72 11... Removing and installing/replacing center lower strap fitting for 3rd seat row
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CENTRE TRIM

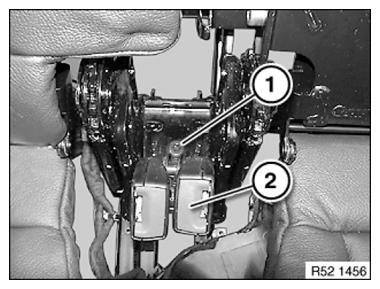

Release screw (1).
Tightening torque 72 11 44AZ .
Remove lower strap fitting (2).
Installation:
Lower strap fitting is coded to prevent incorrect installation.
