61 31 310 Replacing brake-light switch

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

NOTE: Brake light switch (2) is situated above the brake pedal.

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (3).

Press catches (4) together and unclip brake light switch holder (3) from brake pedal.

Installation:

Depress brake pedal.

Slide brake light switch (2) as far as it will go into brake light switch holder (3).

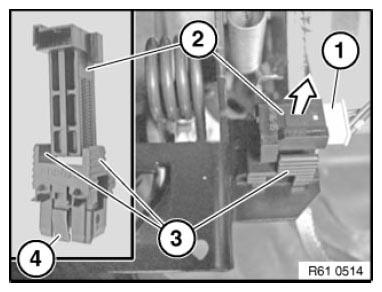

Fig 1: Pulling Brake Light Switch Out Of Brake Light Switch Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Grip brake light switch holder (3), slowly return brake pedal to starting position and pull back to stop .
