61 31 135 Removing and installing/replacing headphones connection socket
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

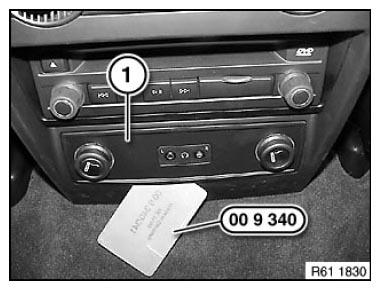

Unclip trim (1) with special tool 00 9 340 from center console.
Installation:
Retaining lugs on trim (1) must not be damaged or missing.
Make sure trim (1) is correctly engaged on center console.

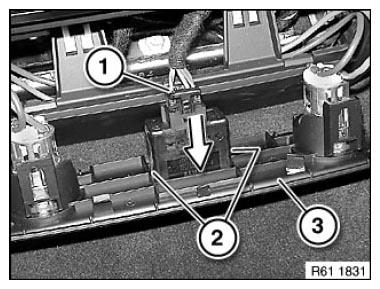

Disconnect plug connection (1).
Press together retaining lugs (2) and feed headphones connection socket in direction of arrow out of trim (3).
Installation:
Make sure headphones connection socket is correctly seated in trim (3).
