61 31 112 Removing and installing/replacing left or right shift paddle for automatic transmission
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove AIRBAG UNIT .

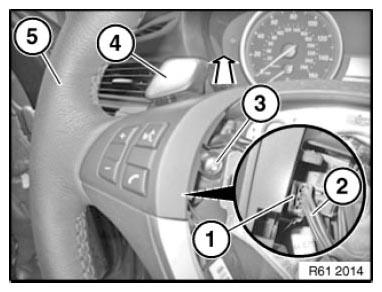

Disconnect plug connection (1).
Release screw (3).
Feed out wiring harness (2) and remove shift paddle for automatic transmission (4) in direction of arrow from steering wheel (5).
Installation:
Make sure shift paddle for automatic transmission (4) is correctly seated on steering wheel (5)
Make sure wiring harness (2) is laid exactly.
