Stripping insulation from optical fibre

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Open hand pliers (1).

Open lever (2) in direction of arrow.

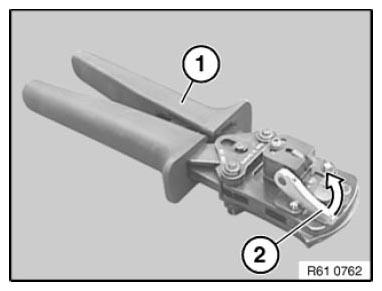

Fig 1: Opening Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close hand pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open hand pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

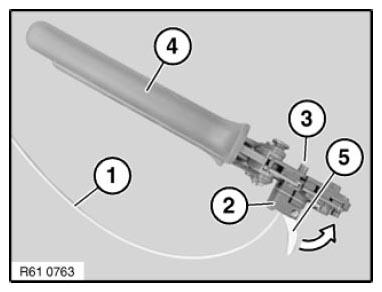

Fig 2: Closing Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.
