Cutting optical fibre

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Open hand pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

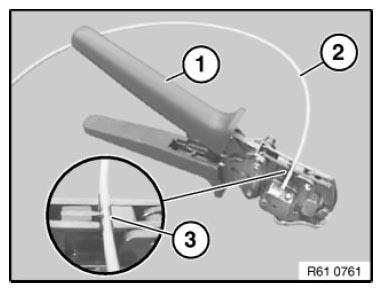

Fig 1: Placing Optical Fibre In Cutting Device
G08530349Courtesy of BMW OF NORTH AMERICA, INC.
