84 21 548 Removing and installing (replacing) hands-free charging electronics (High)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: Comply with notes and instructions on HANDLING OPTICAL WAVEGUIDES .

Necessary preliminary tasks

Disconnect BATTERY NEGATIVE LEAD .
If necessary, remove amplifier . See 65 12 072 REMOVING AND INSTALLING (REPLACING) AMPLIFIER (TOP HIFI SYSTEM) or 65 12 071 REMOVING AND INSTALLING/REPLACING AMPLIFIER (HIFI SYSTEM) .
If necessary, remove TELEMATICS CONTROL UNIT .

Disconnect plug connection (1).

Release all nuts.

Remove hands-free charging electronics (2) from bracket (3).

Installation:

Make sure wiring harness is correctly laid.

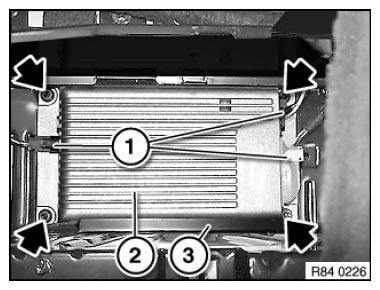

Fig 1: Identifying Plug Connection Hands-Free Charging Electronics And Bracket With Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
If necessary, log mobile phone on to vehicle.
