61 35 975 Removing and installing/replacing bumper aerial/antenna for Comfort Access System
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- E71: Remove cover of bumper panel at bottom rear center

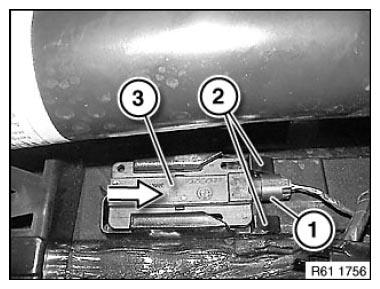

Reach in middle behind bumper trim at rear and disconnect plug connection (1).
Unlock catches (2) and feed bumper aerial/antenna for comfort access system (3) in direction of arrow out of holder.
Installation note:
Make sure bumper aerial/antenna for comfort access system (3) is correctly seated and engaged in holder.
