66 31 001 Adjusting ACC sensor
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see WHEEL & TIRES - SPECIAL TOOLS - 5-SERIES (E60) .
Special Tools Required:
- 36 1 100
- 36 1 130

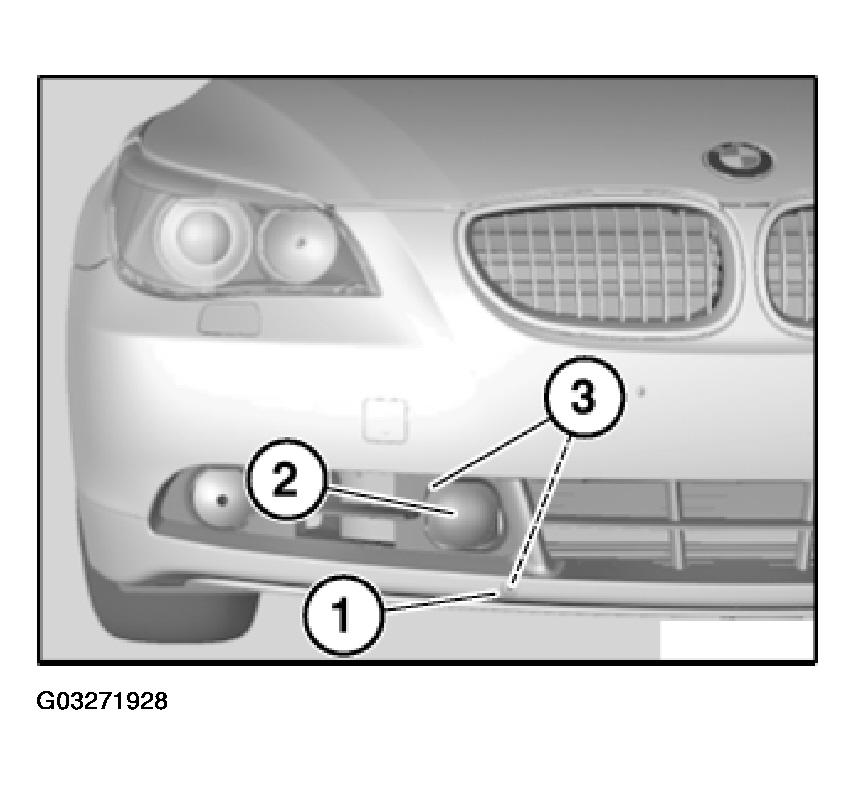

Lever out cap (1).
Carry out adjustment of ACC sensor (2) with special tool 36 1 130 by means of adjusting screws (3).
Special tool required:

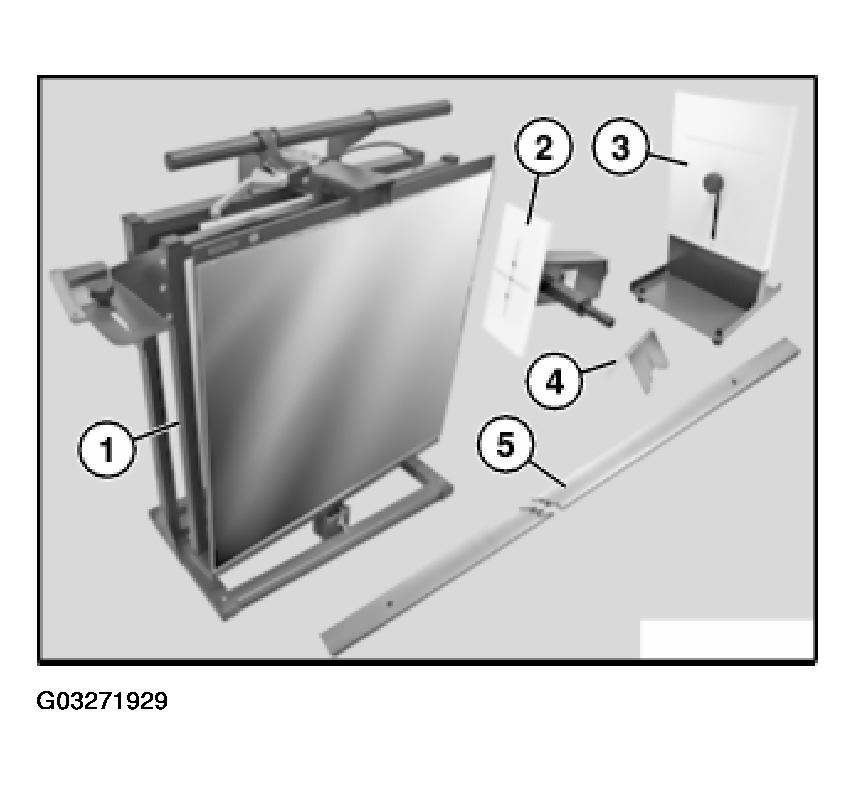

Active Cruise Control ACC adjusting device, complete. Order number: 81 10 0 021 292
Consisting of:
- Mirror, complete.
- Wheel laser.
- Slotted diaphragm.
- Control bracket (for initial installation of rail).
- Rail.
- Setup and operating instructions (not shown).
NOTE:
A holder which is not included in the scope of delivery is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100).
NOTE:
- Follow instructions for ACC adjusting device.
NOTE:
To adjust the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device. Select ACC system in diagnosis. Start test module "ACC adjustment" (service functions) and proceed in accordance with instructions. Handle ACC adjusting device in accordance with mounting and operating instructions provided with device.
NOTE:
Further information on the ACC adjusting device can be found in the BMW Workshop Equipment and Planning Documentation.
