65 12 250 Removing and installing/replacing headphones module

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Disconnect battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
If necessary, remove emergency wheel.

Take off cover for control units (1).

Installation:

Make sure cover for control units (1) is correctly seated on locating pins (2).

Fig 1: Identifying Locating Pins On Control Units Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations show removal from the E60.

Unfasten plug connection (1) and disconnect.

Remove headphones module (2) upwards out of mounting for control units (3).

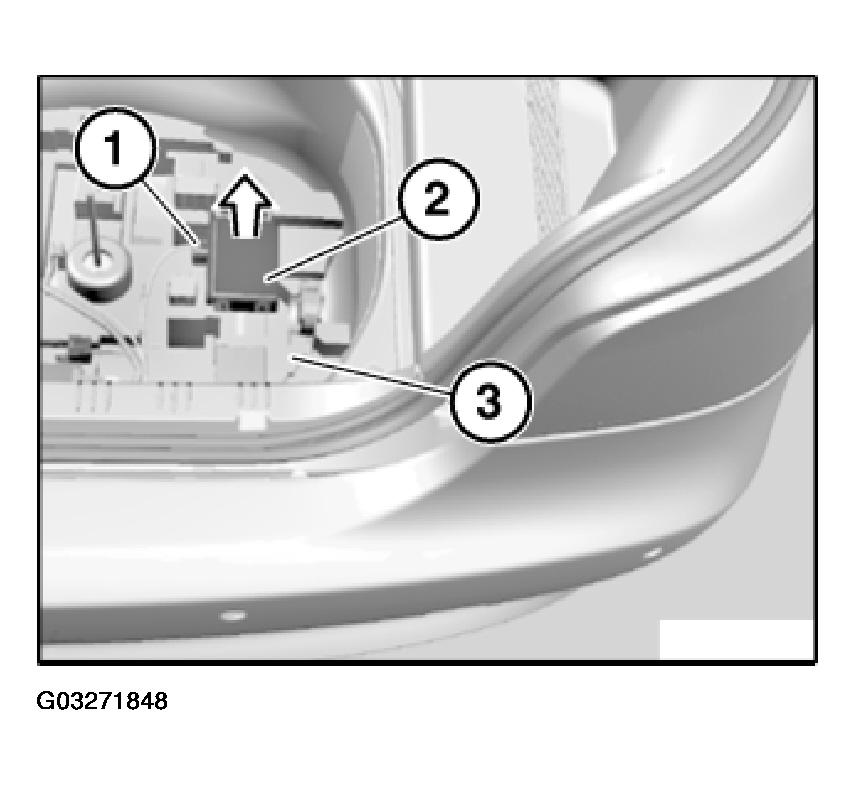

Fig 2: Removing Headphones Module

Courtesy of BMW OF NORTH AMERICA, INC.
