65 12 070 Removing and installing/replacing amplifier
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Partially remove left luggage compartment wheel arch trim. Refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

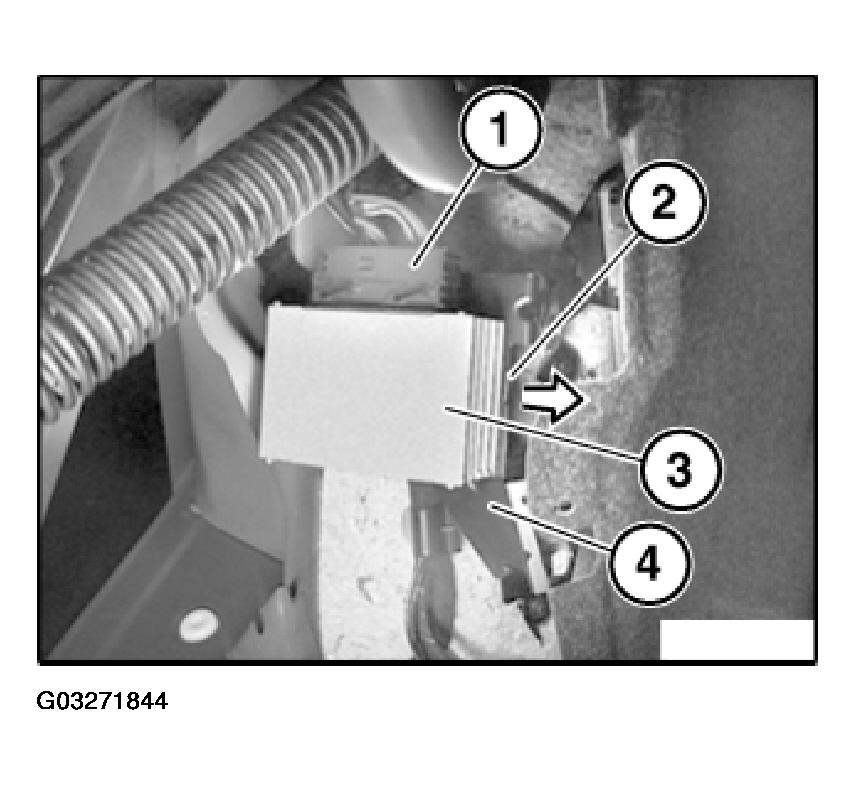

Unfasten plug connection (1) and disconnect.
Pull out retaining plate (2) in direction of arrow.
Installation:
Make retaining plate (2) is correctly seated.
Remove amplifier (3) from holder (4).
